A GVM upgrade raises the Gross Vehicle Mass your ute is legally allowed to weigh when it is loaded - the number on the compliance plate, not a suspension setting. It matters because a modern dual cab leaves the dealership with far less usable payload than most owners assume. Fit a steel bull bar, a winch, a canopy, a dual battery system, a set of drawers and a full long range tank, then add four adults and a week of gear, and a 3,200kg-rated ute can be over its plated limit before it leaves the driveway. Overloaded is not a technicality: it voids insurance, it fails a roadside inspection, and it changes how the vehicle brakes and steers on the Bruce Highway with a van behind it.

What actually changes

A certified upgrade replaces the springs, shock absorbers and, depending on the kit, the leaf packs, bump stops, U-bolts and brake components with heavier-rated equivalents, then re-plates the vehicle at the new mass. The paperwork is the part that makes it legal. You receive a compliance or modification plate and the certification documents that go with it, which is what your insurer and a transport inspector will ask for. Heavier springs on their own are not a GVM upgrade, no matter how much extra load they carry - a distinction that catches a lot of people out.

Pre-registration and post-registration - we do both

There are two routes and they are not interchangeable. A pre-registration upgrade is fitted before the vehicle is first registered and is complied by the supplier under second stage manufacture, so it arrives with federal approval already attached and is generally the cleaner path if you are buying new. A post-registration upgrade is fitted to a vehicle already on the road and is certified by a licensed engineer under Queensland's modification code. The Ute Shop handles both. Which one applies comes down to where your vehicle is in its life, so it is worth a conversation before you order - and if the limit you keep hitting is the combined vehicle-and-trailer figure, a GCM upgrade is a different job again.

Brands and kit options

We are an authorised dealer for the suspension brands we carry, which is what keeps the manufacturer's warranty intact on a fitted kit. The GVM range here is built around Lovells, with Outback Armour, Tough Dog, Dobinsons, EFS 4x4 and ORI covering the lift kits, shock absorbers and spring packs that sit underneath. The differences between them are real and worth understanding: some kits are tuned for constant heavy load and ride firm when the tray is empty, others are progressive and stay comfortable unladen but give up a little control at full weight, and remote-reservoir shocks earn their keep on corrugated dirt but are more than most tradies driving to sites around Kawana will ever use. Load levelling airbag suspension is a different tool again - it manages a variable load, it does not raise your legal limit.

Vehicles we upgrade

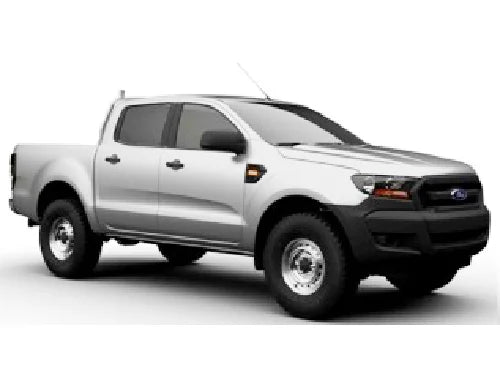

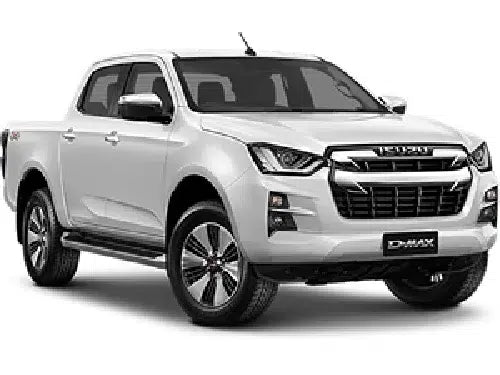

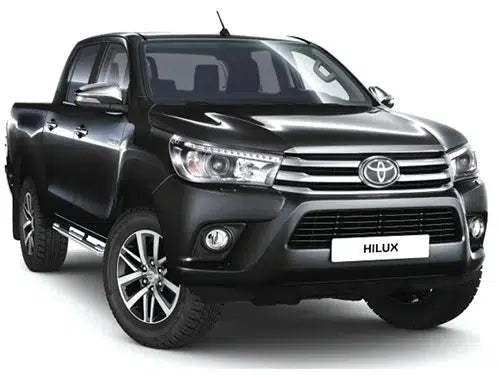

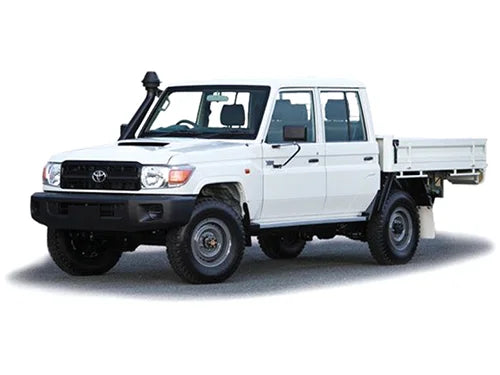

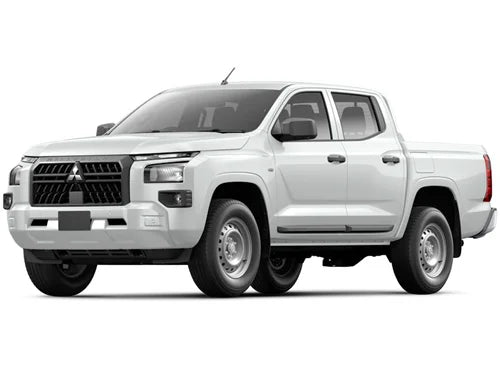

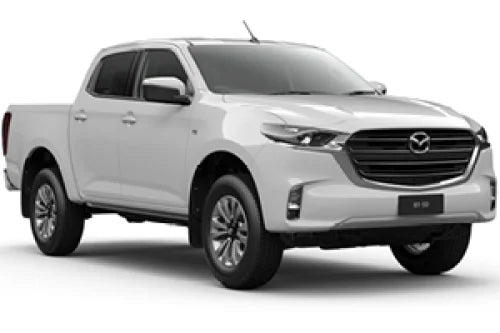

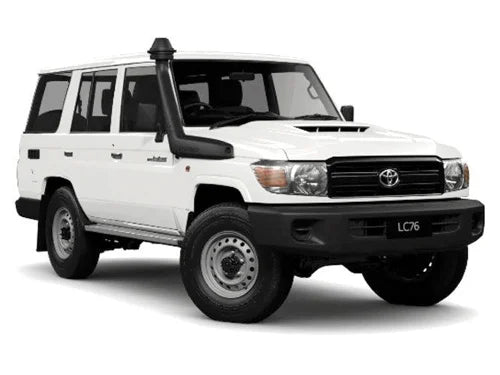

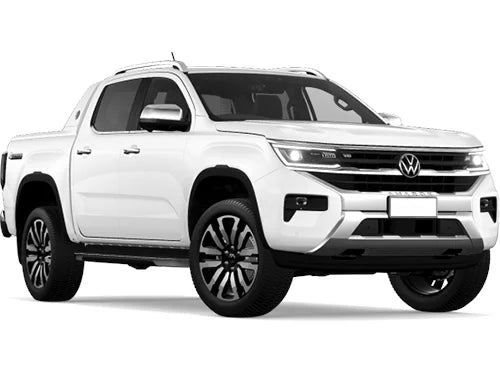

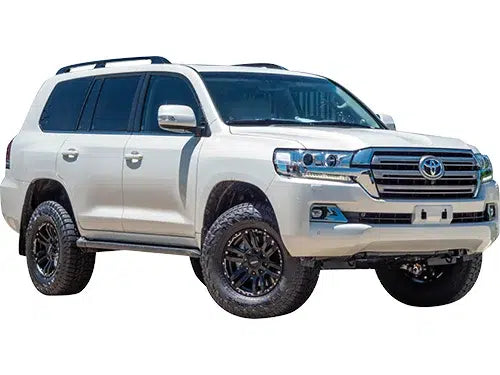

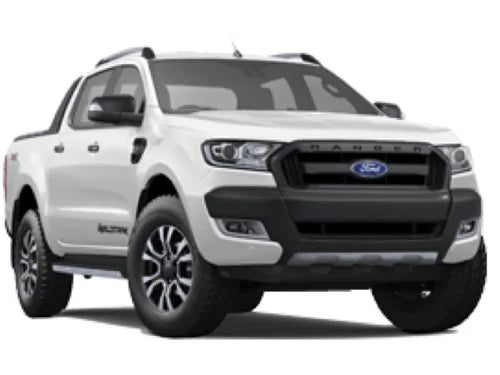

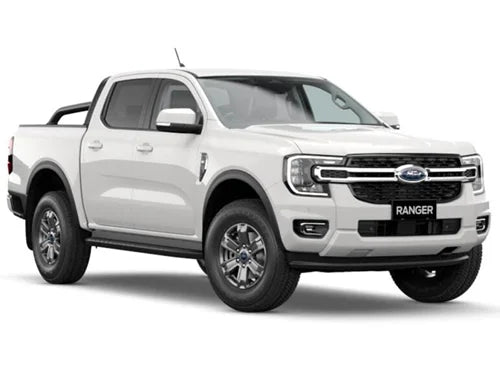

Kits are available for the Ford Ranger and Raptor, Toyota HiLux, Isuzu D-MAX, Toyota LandCruiser 79, 200 and 300 Series, Mitsubishi Triton, Mazda BT-50, Volkswagen Amarok, Nissan Navara and Ford Everest, plus the American trucks we specialise in - RAM 1500, RAM 2500 and 3500, and the Chevrolet Silverado. Availability varies by model and build year, because each kit has to be certified for that specific vehicle rather than adapted from a similar one.

Supplied and fitted at Warana

Everything we sell can be supplied and fitted in our own workshop at 4/43 Premier Circuit, Warana, on the Sunshine Coast - one workshop, our own fitters, not a franchise network. We do the measure-up, the fitting, the wheel alignment afterwards and the certification paperwork, and we will tell you honestly if the load you are describing does not need an upgrade at all. Customers come to us from Kawana, Caloundra, Maroochydore, Mooloolaba, Buderim, Nambour, Noosa, Gympie and Caboolture, and we deliver Australia-wide for owners fitting their own. Tell us what you tow, what you carry and what you have already bolted on, and we will quote the whole job.
