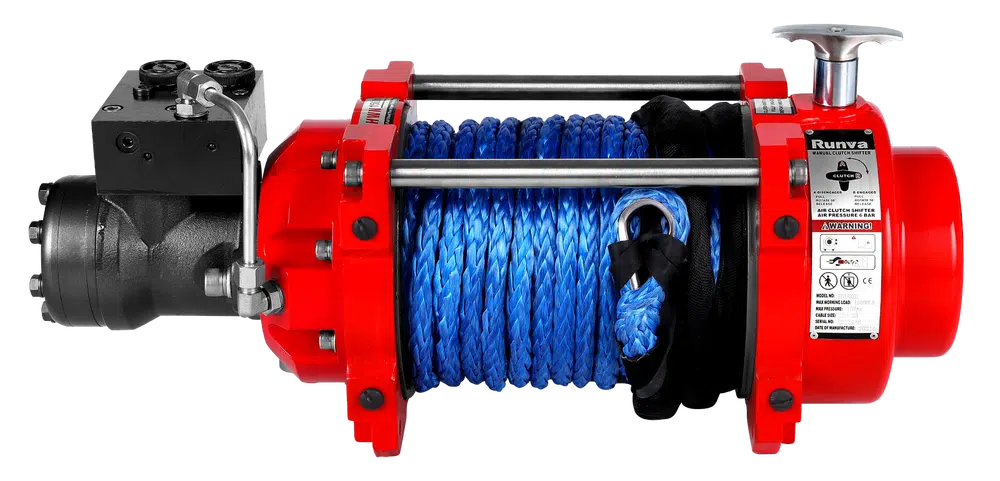

Runva HWN15000I Hydraulic Winch with Synthetic Rope

ENQUIRY ONLY
Taxes included.
Tech Specs RATED LINE PULL 15,000LB (6,804KG) MOTOR DISPLACEMENT 80ML/R OIL FLOW REQUIREMENTS 25 – 60L/MIN PRESSURE REQUIREMENT 13MPA GEAR TRAIN FULL STEEL 2 STAGE PLANETARY GEAR RATIO 33.4:1 CLUTCH TYPE STAINLESS... SHOW MORE ↓
View full details
Tech Specs RATED LINE PULL 15,000LB (6,804KG) MOTOR DISPLACEMENT 80ML/R OIL FLOW REQUIREMENTS 25 – 60L/MIN PRESSURE REQUIREMENT 13MPA GEAR TRAIN FULL STEEL 2 STAGE PLANETARY GEAR RATIO 33.4:1 CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH CLUTCH HANDLE POSITION TOP OF WINCH BRAKE AUTOMATIC LOAD HOLDING HYDRAULIC DISC CABLE TYPE SYNTHETIC ROPE CABLE SIZE 10MM X 25M DRUM SIZE 89MM X 217MM MOUNTING BOLT PATTERN 254MM X 114.3MM (4X M12 BOLTS) OVERALL DIMENSIONS 586MM X 255MM X 262MM REMOTE CONTROL OPTIONAL EXTRA. (DIRECTIONAL CONTROL VALVE ALSO REQUIRED) FINISH RED POWDER COAT WARRANTY LIMITED 18 MONTH COMMERCIAL WARRANTY SHIPPING WEIGHT 71.00KG SHIPPING WIDTH 0.330M SHIPPING HEIGHT 0.330M SHIPPING LENGTH 0.660M

Technical Specifications & Fitment

Supplier Runva Winch
