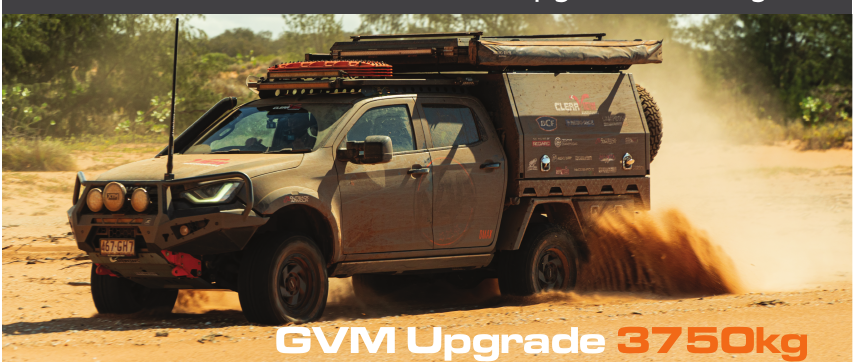

Isuzu D-Max RG1 (4x4) - GVM Upgrade - 3750kg

Vehicle Specifications & Information

Isuzu D-Max RG1 (4x4) - GVM Upgrade - 3750kg

Vehicle Model Variants

• 4x4 models only. Single Cab: SX cab chassis.
• Space Cab: SX cab chassis and LS-U styleside utility.
• Crew Cab dual cab/cab chassis: LS-U, LS-M and SX.
• Crew Cab dual cab/styleside utility: X-TERRAIN, LS-U+, LS-U, X-RIDER, LS-M and SX. BLADE is not suitable.

Approved Tyre Sizes

GVM Upgrade Approved Shock Absorbers

Adjustable Internal Bypass: This GVM upgrade is available only with Adjustable Internal Bypass shock absorbers. Adjustable damping control with 20+ settings lets the suspension be set and forgotten or adjusted to suit vehicles with varying loads, on and off road, putting the driver in control of how the vehicle feels and handles.

Suspension Kits - Front

• Assembled strut kits are complete replacement items pre-configured by the Outback Armour tech team.
• Front load options: Trail - OEM bumper (unladen); Expedition - approx 50-100kg constant front load; Expedition HD - approx 100-150kg constant front load.
• Kit inclusions: Shock Absorbers (ADJ) - 2 each, Strut Top Mounts - 2 each, Coil Springs - 1 pair.

Suspension Kits - Rear

• Expedition XXHD: 35mm lift (@ approx 850kg load); 500kg minimum rear load required.
• Kit inclusions: Shock Absorbers (ADJ) - 2 each, Leaf Springs - 2 each, U-Bolts - 4 each, Shackles & Pins - 2 each, Leaf Spring Bush Kit (polyurethane) - 1 kit, Rear Bump Stops - 1 kit, Brake Line Drop Bracket - 1 each, Brake Line Extension - 1 each.

GVM Components Required

• CAT 6 Indicator & Wiring Harness Kit - 1 kit.
• GVM Document Package (Owners Manual Supplement and Tyre Placard) - 1 kit.

Optional Extras

• Upper Control Arms - 1 kit.
• Front Bump Stop Kit - 1 kit.
• Rear Bump Stop Kit - 1 kit.
• Diff Drop Kit - 1 kit.

Original vehicle GVM and towing capacity at full GVM vary based on variant. Tyres fitted must be rated to at least 140km/h (N speed rating) for off-road vehicles. Shock absorbers available in Adjustable Internal Bypass (ADJ) construction only.

Warranty: 5 year unlimited kilometre warranty. Warranty excludes accelerated wear and tear of original vehicle components due to increased loads.
