• RUNVA EWB20000 PREMIUM WINCH 24V WITH SYNTHETIC ROPE
1 1

Runva Winch

Suspension & Recovery

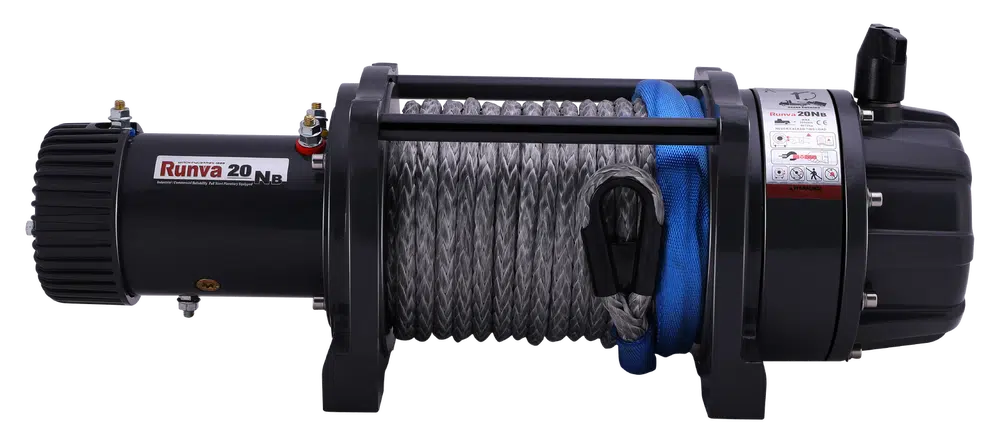

RUNVA EWB20000 PREMIUM WINCH 24V WITH SYNTHETIC ROPE

ENQUIRY ONLY
Taxes included.
Tech SpecsRATED LINE PULL 20,000LB (9,072KG)MOTOR (12V) 5.5KW/7.4HP; (24V) 6.1KW/8.2HPGEAR TRAIN FULL STEEL 3 STAGE PLANETARYGEAR RATIO 370:1CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCHCLUTCH HANDLE POSITION GEARBOX CAN BE ROTATEDBRAKE AUTOMATIC RATCHET LOAD... SHOW MORE ↓
View full details
Tech Specs
RATED LINE PULL 20,000LB (9,072KG)
MOTOR (12V) 5.5KW/7.4HP; (24V) 6.1KW/8.2HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 370:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 12MM X 25M
DRUM SIZE 88MM X 217MM
MOUNTING BOLT PATTERN 254MM X 114.3MM; 254MM X 165.1MM (8X M12 BOLTS)
OVERALL DIMENSIONS 636MM X 214MM X 252MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH GREY POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY (18 MONTH COMMERCIAL USE WARRANTY)
SHIPPING WEIGHT 63.00KG
SHIPPING WIDTH 0.360M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.720M

Technical Specifications & Fitment

Supplier Runva Winch
