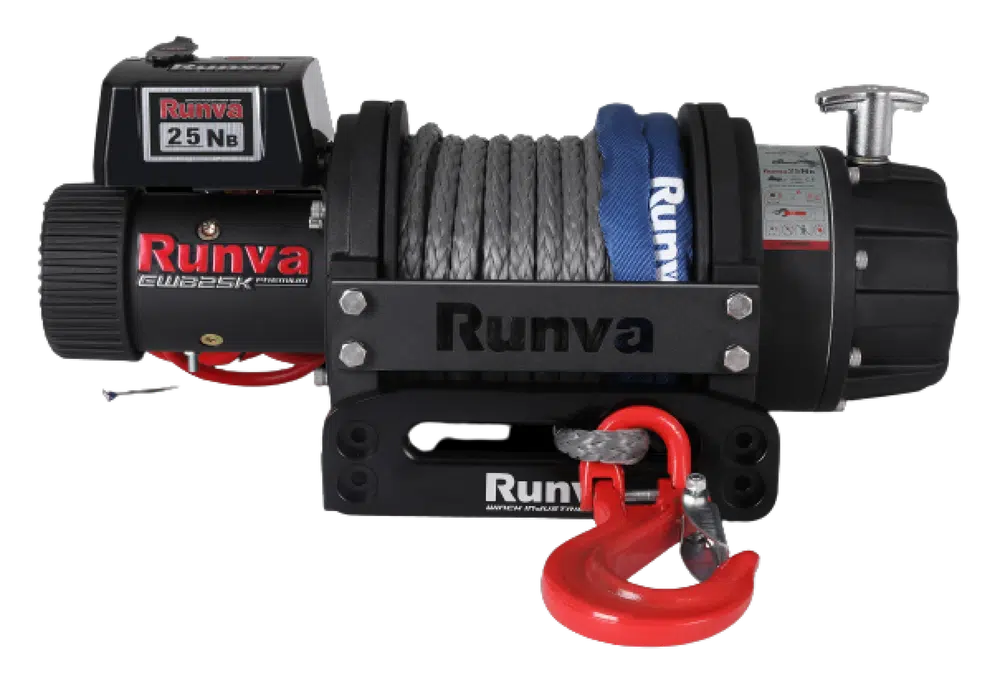

• RUNVA EWB25000 PREMIUM 12V WITH SYNTHETIC ROPE
1 1

Runva Winch

Suspension & Recovery

RUNVA EWB25000 PREMIUM 12V WITH SYNTHETIC ROPE

ENQUIRY ONLY
Taxes included.
Tech SpecsRATED LINE PULL 25,000LB (11,340KG)MOTOR (12V) 5.5KW/7.4HP; (24V) 6.1KW/8.2HPGEAR TRAIN FULL STEEL 3 STAGE PLANETARYGEAR RATIO 450:1CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCHCLUTCH HANDLE POSITION GEARBOX CAN BE ROTATEDBRAKE AUTOMATIC RATCHET LOAD... SHOW MORE ↓
View full details
Tech Specs
RATED LINE PULL 25,000LB (11,340KG)
MOTOR (12V) 5.5KW/7.4HP; (24V) 6.1KW/8.2HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 450:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 14MM X 25M
DRUM SIZE 120MM X 198MM
MOUNTING BOLT PATTERN 254MM X 114.3MM; 254MM X 190.5MM (8X M12 BOLTS)
OVERALL DIMENSIONS 638MM X 298MM X 300MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH MATT BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY (18 MONTH COMMERCIAL USE WARRANTY)
SHIPPING WEIGHT 95.00KG
SHIPPING WIDTH 0.410M
SHIPPING HEIGHT 0.450M
SHIPPING LENGTH 0.740M

Technical Specifications & Fitment

Supplier Runva Winch
