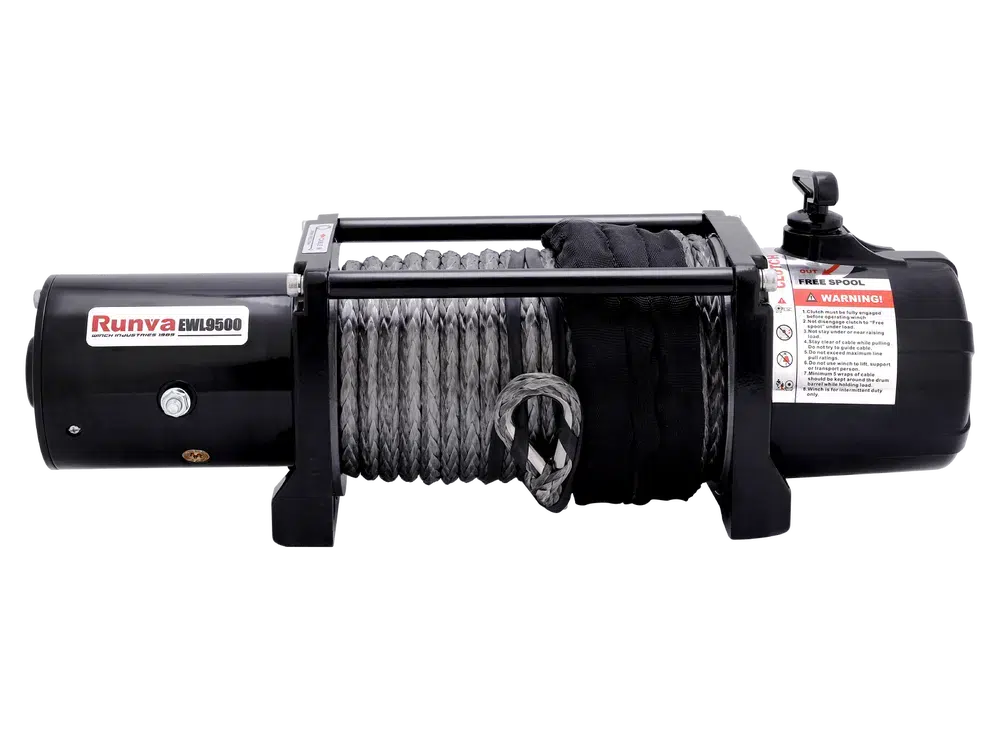

Tech Specs
RATED LINE PULL 9,500LB (4,309KG)
MOTOR (12V) 4.6KW/6.1HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 184:1
CLUTCH TYPE SLIDING RING GEAR
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC LOAD HOLDING IN DRUM
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 25M
DRUM SIZE 63MM X 226MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
OVERALL DIMENSIONS 542MM X 160MM X 199MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SHIPPING WEIGHT 27.30KG
SHIPPING WIDTH 0.330M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.635
