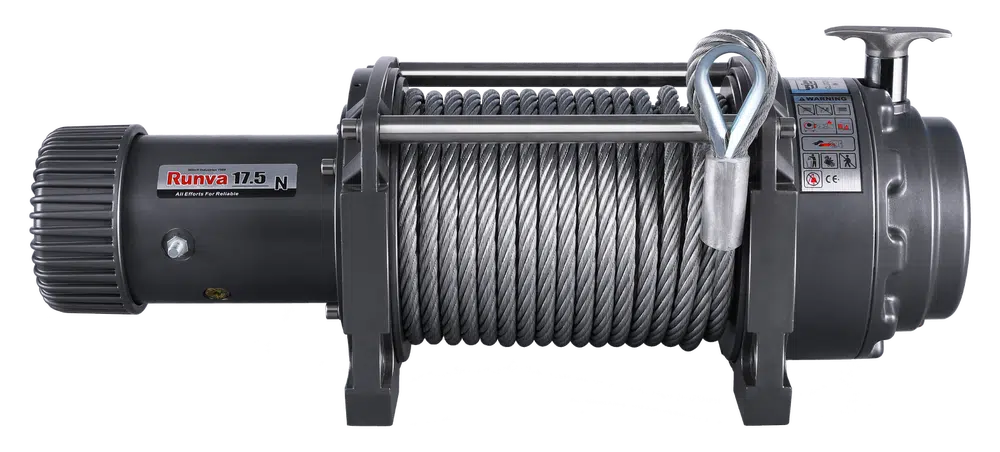

• RUNVA EWN17500 12V WITH STEEL CABLE
1 1

Runva Winch

Suspension & Recovery

RUNVA EWN17500 12V WITH STEEL CABLE

ENQUIRY ONLY
Taxes included.
Tech SpecsRATED LINE PULL 17,500LB (7,938KG)MOTOR (12V) 5.4KW/7.1HP; (24V) 6.0KW/7.9HPGEAR TRAIN FULL STEEL 3 STAGE PLANETARYGEAR RATIO 430:1CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCHCLUTCH HANDLE POSITION GEARBOX CAN BE ROTATEDBRAKE AUTOMATIC LOAD HOLDING... SHOW MORE ↓
View full details
Tech Specs
RATED LINE PULL 17,500LB (7,938KG)
MOTOR (12V) 5.4KW/7.1HP; (24V) 6.0KW/7.9HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 430:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC LOAD HOLDING SCREW CONE
CABLE TYPE AIRCRAFT GRADE STEEL CABLE
CABLE SIZE 12MM X 26.5M
DRUM SIZE 89MM X 219MM
MOUNTING BOLT PATTERN 254MM X 114.3MM; 254MM X 165.1MM (8X M12 BOLTS)
OVERALL DIMENSIONS 620MM X 214MM X 250MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH GREY POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SHIPPING WEIGHT 67.00KG
SHIPPING WIDTH 0.360M
SHIPPING HEIGHT 0.355M
SHIPPING LENGTH 0.680M

Technical Specifications & Fitment

Supplier Runva Winch
