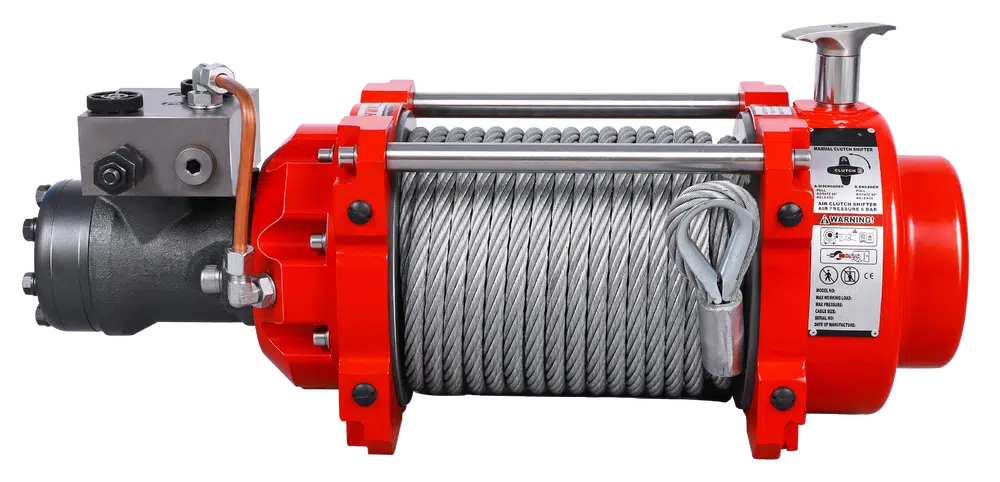

RUNVA HWN15000I HYDRAULIC WINCH WITH STEEL CABLE

ENQUIRY ONLY
Taxes included.
Tech SpecsRATED LINE PULL 15,000LB (6,804KG)MOTOR DISPLACEMENT 80ML/ROIL FLOW REQUIREMENTS 25 – 60L/MINPRESSURE REQUIREMENT 13MPAGEAR TRAIN FULL STEEL 2 STAGE PLANETARYGEAR RATIO 33.4:1CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCHCLUTCH HANDLE POSITION TOP OF... SHOW MORE ↓
View full details
Tech Specs
RATED LINE PULL 15,000LB (6,804KG)
MOTOR DISPLACEMENT 80ML/R
OIL FLOW REQUIREMENTS 25 – 60L/MIN
PRESSURE REQUIREMENT 13MPA
GEAR TRAIN FULL STEEL 2 STAGE PLANETARY
GEAR RATIO 33.4:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION TOP OF WINCH
BRAKE AUTOMATIC LOAD HOLDING HYDRAULIC DISC
CABLE TYPE STEEL CABLE
CABLE SIZE 12MM X 26.5M
DRUM SIZE 89MM X 217MM
MOUNTING BOLT PATTERN 254MM X 114.3MM (4X M12 BOLTS)
OVERALL DIMENSIONS 586MM X 255MM X 262MM
REMOTE CONTROL OPTIONAL EXTRA. (DIRECTIONAL CONTROL VALVE ALSO REQUIRED)
FINISH RED POWDER COAT
WARRANTY LIMITED 18 MONTH COMMERCIAL WARRANTY
SHIPPING WEIGHT 71.00KG
SHIPPING WIDTH 0.330M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.660M

Technical Specifications & Fitment

Supplier Runva Winch
