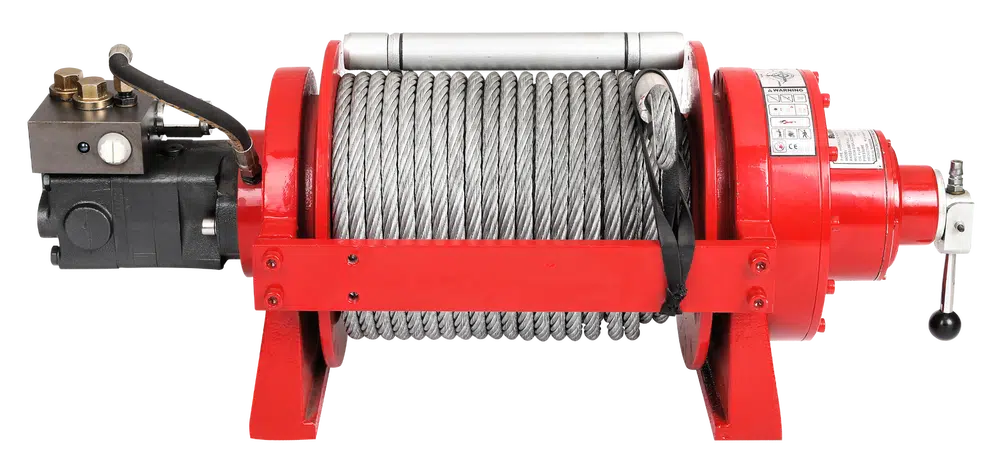

• RUNVA HWP20000Y2P HYDRAULIC WINCH WITH STEEL CABLE
1 1

Runva Winch

Suspension & Recovery

RUNVA HWP20000Y2P HYDRAULIC WINCH WITH STEEL CABLE

ENQUIRY ONLY
Taxes included.
Tech SpecsRATED LINE PULL 20,000LB (9,072KG)MOTOR DISPLACEMENT 100ML/ROIL FLOW REQUIREMENTS 25 – 75L/MINPRESSURE REQUIREMENTS 17.5MPAGEAR TRAIN FULL STEEL 2 STAGE PLANETARYGEAR RATIO 39:1CLUTCH TYPE MANUAL + AIRCLUTCH HANDLE POSITION SIDE OF WINCHBRAKE... SHOW MORE ↓
View full details
Tech Specs
RATED LINE PULL 20,000LB (9,072KG)
MOTOR DISPLACEMENT 100ML/R
OIL FLOW REQUIREMENTS 25 – 75L/MIN
PRESSURE REQUIREMENTS 17.5MPA
GEAR TRAIN FULL STEEL 2 STAGE PLANETARY
GEAR RATIO 39:1
CLUTCH TYPE MANUAL + AIR
CLUTCH HANDLE POSITION SIDE OF WINCH
BRAKE AUTOMATIC LOAD HOLDING HYDRAULIC DISC
CABLE TYPE STEEL CABLE
CABLE SIZE 14MM X 48M
DRUM SIZE138MM X 316MM
MOUNTING BOLT PATTERN 431M X 64MM; 431MM X 192MM (8X M14 BOLTS)
OVERALL DIMENSIONS 835MM X 390MM X 320MM
REMOTE CONTROL N/A
FINISHRED POWDER COAT
WARRANTY LIMITED 18 MONTH COMMERCIAL WARRANTY
SHIPPING WEIGHT 163.00KG
SHIPPING WIDTH 0.530M
SHIPPING HEIGHT 0.530M
SHIPPING LENGTH 1.050M

Technical Specifications & Fitment

Supplier Runva Winch
