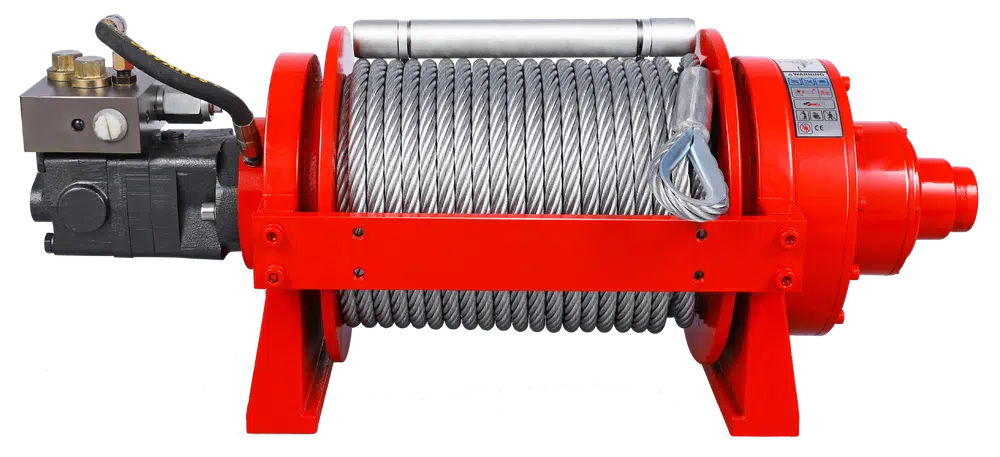

RUNVA HWP20000YP HYDRAULIC WINCH WITH STEEL CABLE

ENQUIRY ONLY
Taxes included.
Tech SpecsRATED LINE PULL 20,000LB (9,072KG)MOTOR DISPLACEMENT 100ML/ROIL FLOW REQUIREMENTS 25 – 75L/MINPRESSURE REQUIREMENT 17.5MPAGEAR TRAIN FULL STEEL 2 STAGE PLANETARYGEAR RATIO 17.3:1CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCHCLUTCH HANDLE POSITION TOP OF... SHOW MORE ↓
View full details
Tech Specs
RATED LINE PULL 20,000LB (9,072KG)
MOTOR DISPLACEMENT 100ML/R
OIL FLOW REQUIREMENTS 25 – 75L/MIN
PRESSURE REQUIREMENT 17.5MPA
GEAR TRAIN FULL STEEL 2 STAGE PLANETARY
GEAR RATIO 17.3:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION TOP OF WINCH
BRAKE AUTOMATIC LOAD HOLDING HYDRAULIC DISC
CABLE TYPE STEEL CABLE
CABLE SIZE 12MM X 26.5M
DRUM SIZE 127MM X 266MM
MOUNTING BOLT PATTERN 303.5MM X 114.3MM; 368.5MM X 171.2MM (8X M12 BOLTS)
OVERALL DIMENSIONS 735MM X 300MM X 277MM
REMOTE CONTROL OPTIONAL EXTRA.DIRECTIONAL CONTROL VALVE ALSO REQUIRED.
FINISH RED POWDER COAT
WARRANTY LIMITED 18 MONTH COMMERCIAL WARRANTY
SHIPPING WEIGHT 163.00KG
SHIPPING WIDTH 0.550M
SHIPPING HEIGHT 0.530M
SHIPPING LENGTH 1.050M

Technical Specifications & Fitment

Supplier Runva Winch
