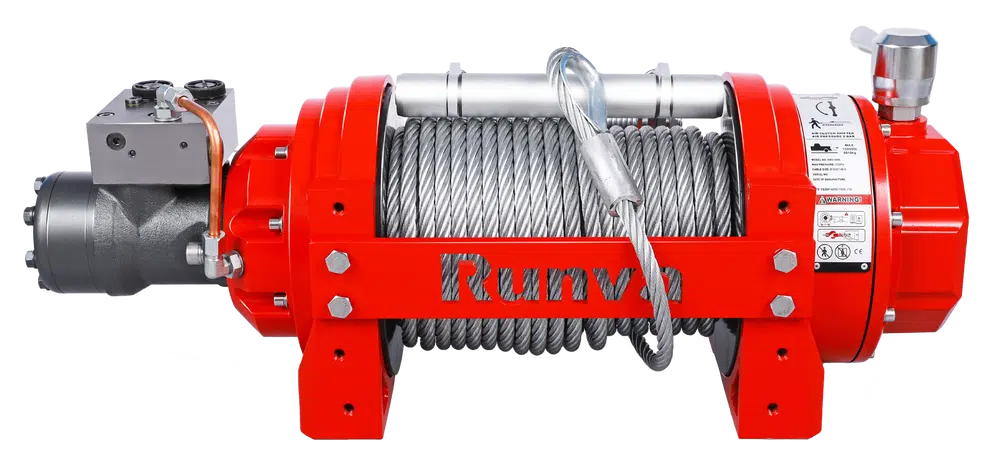

RUNVA HWV15000 HYDRAULIC WINCH WITH STEEL CABLE

ENQUIRY ONLY
Taxes included.
Tech SpecsRATED LINE PULL 15,000LB (6,804KG)MOTOR DISPLACEMENT 160ML/ROIL FLOW REQUIREMENTS 25 – 60L/MINPRESSURE REQUIREMENTS 16MPAGEAR TRAIN FULL STEEL 2 STAGE PLANETARYGEAR RATIO 17.3:1CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCHCLUTCH HANDLE POSITION TOP OF... SHOW MORE ↓
View full details
Tech Specs
RATED LINE PULL 15,000LB (6,804KG)
MOTOR DISPLACEMENT 160ML/R
OIL FLOW REQUIREMENTS 25 – 60L/MIN
PRESSURE REQUIREMENTS 16MPA
GEAR TRAIN FULL STEEL 2 STAGE PLANETARY
GEAR RATIO 17.3:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION TOP OF WINCH
BRAKE AUTOMATIC LOAD HOLDING HYDRAULIC DISC
CABLE TYPE STEEL CABLE
CABLE SIZE 12MM X 26.5M
DRUM SIZE 127MM X 266MM
MOUNTING BOLT PATTERN 303.5MM X 114.3MM; 368.5MM X 171.2MM (8X M12 BOLTS)
OVERALL DIMENSIONS 735MM X 300MM X 277MM
REMOTE CONTROL OPTIONAL EXTRA. (DIRECTIONAL CONTROL VALVE ALSO REQUIRED)
FINISH RED POWDER COAT
WARRANTY LIMITED 18 MONTH COMMERCIAL WARRANTY
SHIPPING WEIGHT 83.60KG
SHIPPING WIDTH 0.440M
SHIPPING HEIGHT 0.460M
SHIPPING LENGTH 0.840M

Technical Specifications & Fitment
