• RUNVA HWX12000 HYDRAULIC WINCH WITH SYNTHETIC ROPE
1 1

Runva Winch

Suspension & Recovery

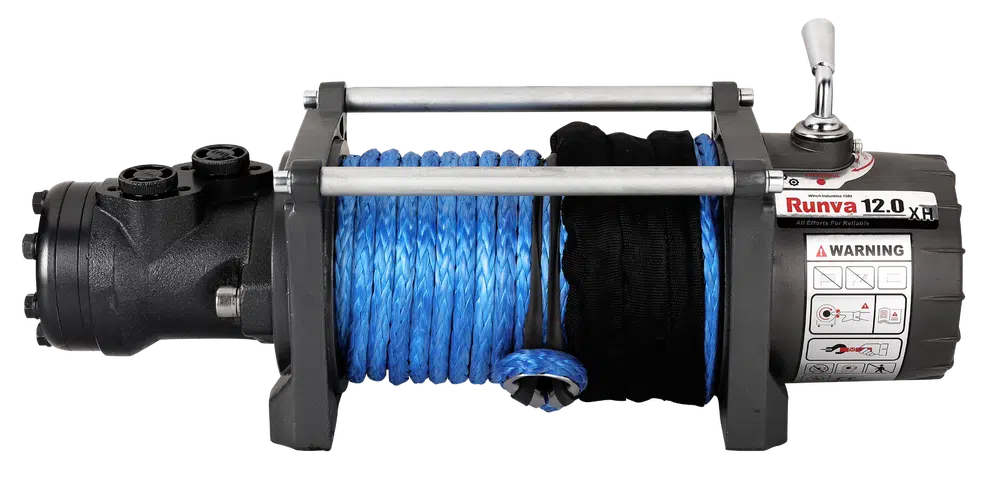

RUNVA HWX12000 HYDRAULIC WINCH WITH SYNTHETIC ROPE

ENQUIRY ONLY
Taxes included.
Tech SpecsRATED LINE PULL 12,000LB (5,897KG)HYDRAULIC MOTOR DISPLACEMENT 65ML/ROIL FLOW 15-45L/MINPRESSURE 11MPAGEAR TRAIN FULL STEEL TWO STAGE PLANETARYGEAR RATIO 28:1CLUTCH TYPE SLIDING RING GEARCLUTCH HANDLE POSITION GEARBOX CAN BE ROTATEDBRAKE AUTOMATIC LOAD... SHOW MORE ↓
View full details
Tech Specs
RATED LINE PULL 12,000LB (5,897KG)
HYDRAULIC MOTOR DISPLACEMENT 65ML/R
OIL FLOW 15-45L/MIN
PRESSURE 11MPA
GEAR TRAIN FULL STEEL TWO STAGE PLANETARY
GEAR RATIO 28:1
CLUTCH TYPE SLIDING RING GEAR
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC LOAD HOLDING SCREW CONE
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 25M
DRUM SIZE 63MM X 223MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
OVERALL DIMENSIONS 550MM X 174MM X 217MM
FINISH GREY POWDER COAT
WARRANTY LIMITED 5 YEAR MOTOR AND LIFETIME MECHANICAL WARRANTY
SHIPPING WEIGHT 42.00KG
SHIPPING WIDTH 0.330M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.635M

Technical Specifications & Fitment

Supplier Runva Winch
