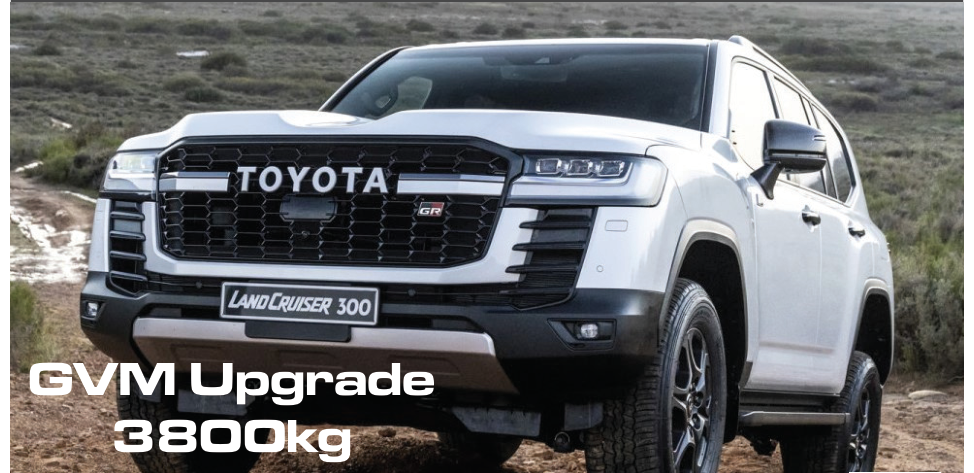

Toyota Landcruiser 300 Series GR Sport - GVM Upgrade - 3800kg

ENQUIRY ONLY
Taxes included.
Vehicle Specifications & InformationToyota Landcruiser 300 Series GR Sport - GVM Upgrade - 3800kg Vehicle Data Original GVM Upgrade Gross Vehicle Mass (GVM) 3280 kg 3800 kg Front Axle Rating 1630 kg... SHOW MORE ↓
View full details

Vehicle Specifications & Information

Toyota Landcruiser 300 Series GR Sport - GVM Upgrade - 3800kg

Vehicle Data Original GVM Upgrade
Gross Vehicle Mass (GVM) 3280 kg 3800 kg
Front Axle Rating 1630 kg 1800 kg
Rear Axle Rating 1930 kg 2400 kg
Braked Towing Capacity 3500 kg 3500 kg
Gross Combination Mass (GCM) 6750 kg 6750 kg
Towing Capacity @ Full GVM 3470 kg 2950 kg
Vehicle Category Code MC NB1

Vehicle Model Variants

  • FJA300R-GMUSYQ - GR Sport.
  • GX, GXL, VX & Sahara and Sahara ZX variants are not suitable in this GR Sport brochure; refer to non-GR Sport brochure.

Approved Tyre Sizes

Approved Tyre Sizes Rim Load Rating Tyre Load/Speed
245/75R17 >= 1200 kg 115H
265/65R18 >= 1200 kg 115V
265/55R20 >= 1200 kg 115V

GVM Upgrade Approved Shock Absorbers

Digressive / Adjustable Internal Bypass: Designed and engineered for endurance, highly featured to resist shock fade and heat, specifically designed for touring and fleet vehicles, and built for comfort and control on corrugations and rough roads. Adjustable Internal Bypass shock absorbers provide adjustable damping control with 20+ settings for vehicles with varying loads, on and off road.

Suspension Kits - Front

  • Assembled strut kits are complete replacement items pre-configured by the Outback Armour tech team.
  • Front load options: Trail - OEM bumper (unladen); Expedition - approx 50-100kg constant front load; Expedition HD - approx 100-150kg constant front load.
  • Kit inclusions: Shock Absorbers (DSV or ADJ) - 2 each, Strut Top Mounts - 2 each, Coil Springs - 1 pair.

Suspension Kits - Rear

  • Expedition: 50mm lift (@ approx 150kg load); 150kg minimum rear load recommended.
  • Expedition HD: 50mm lift (@ approx 300kg load); 300kg minimum rear load required.
  • Kit inclusions: Shock Absorbers (DSV or ADJ) - 2 each, Coil Springs - 1 pair, Coil Perch Reinforcement Kit - 1 kit, Air Bag Kit - 1 kit, Rear Bump Stop Kit - 1 kit.

GVM Components Required

  • CAT 6 Indicator & Wiring Harness Kit - 1 kit.
  • Auxiliary Reverse Light Kit - 1 kit.
  • GVM Document Package (Owners Manual Supplement and Tyre Placard) - 1 kit.

Optional Extras

  • Upper Control Arms - 1 kit.
  • Front Bump Stop Kit - 1 kit.
  • Shock Absorber Stone Shield Kit (suits ADJ only) - 1 kit.
  • Adjustable Rear Panhard Rod - 1 each.

Tyres fitted must be rated to at least 140km/h (N speed rating) for off-road vehicles. Airbags must be inflated to a minimum of 5psi at all times to ensure proper fitment is maintained.

Warranty: 5 year unlimited kilometre warranty. Warranty excludes accelerated wear and tear of original vehicle components due to increased loads.

Technical Specifications & Fitment

Supplier Outback Armour
