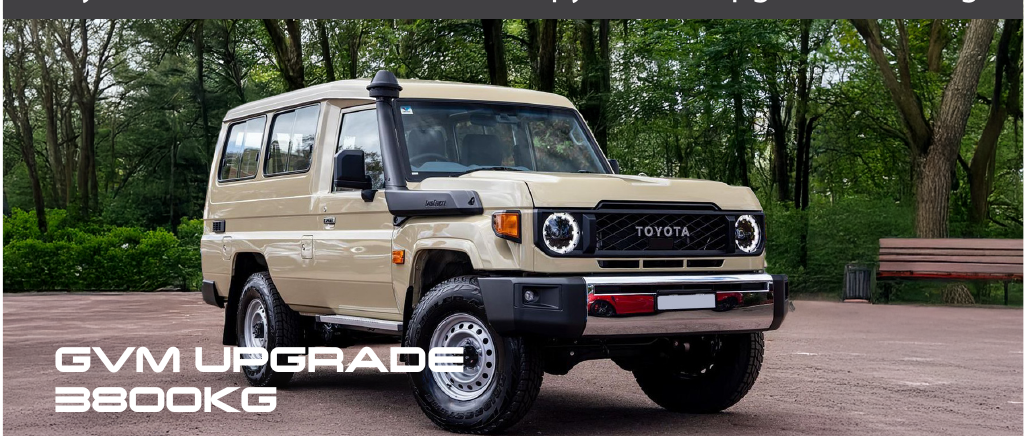

Toyota Landcruiser 70 J7 (78 Troopy) - GVM Upgrade - 3800kg

Vehicle Specifications & Information

Toyota Landcruiser 70 J7 (78 Troopy) - GVM Upgrade - 3800kg

Vehicle Model Variants

• Troop Carrier: WorkMate - 4cyl (2023+), WorkMate - V8 (09/2022+), GXL - 4cyl (2023+) and GXL - V8 (09/2022+).

Approved Tyre Sizes

GVM Upgrade Approved Shock Absorbers

Digressive / Adjustable Internal Bypass: Designed and engineered for endurance, highly featured to resist shock fade and heat, specifically designed for touring and fleet vehicles, and built for comfort and control on corrugations and rough roads. Adjustable Internal Bypass shock absorbers provide adjustable damping control with 20+ settings for vehicles with varying loads, on and off road.

Suspension Kits - Front

• Front load options: Trail - OEM bumper (unladen); Expedition - approx 50-100kg constant front load; Expedition HD - approx 100-150kg constant front load.
• Kit inclusions: Shock Absorbers (DSV or ADJ) - 2 each, Steering Damper (Foam Cell) - 1 each, Coil Springs - 1 pair, Front Extended Progressive Rate Bump Stops - 1 kit, Coil Spring Isolator - Front (10mm) - 2 each, Caster Correction Kit - Rubber - 1 kit, ABS Bracket Kit (Front/Rear) - 1 kit, Brake Line Spacer Kit - Front (suits 4cyl only) - 1 kit, Front Sway Bar Spacer Kit - 1 kit, Sway Bar Links - 2 each.

Suspension Kits - Rear

• Expedition: 50mm lift (@ approx 400kg load); 200kg minimum rear load recommended.
• Expedition HD: 50mm lift (@ approx 600kg load); 400kg minimum rear load required.
• Expedition XHD: 50mm lift (@ approx 800kg load); 600kg minimum rear load recommended.
• Kit inclusions: Shock Absorbers (DSV or ADJ) - 2 each, Leaf Springs - 2 each, U-Bolts - 4 each, Shackles & Pins - 2 each, Jounce Stops Rear - 1 kit, Leaf Spring Bush Kit (polyurethane) - 1 kit, Handbrake Cable Bracket Kit - 1 kit, Handbrake Cable Spacer Kit - 1 kit, Sway Bar Links - 2 each.

GVM Components Required

• GVM Document Package (Owners Manual Supplement and Tyre Placard) - 1 kit.

Optional Extras

• Leaf Spring Skid Plate - 1 kit.
• Front Chassis Bump Stop Spacer Kit (25mm) - 1 kit.

Original vehicle GVM and towing capacity at full GVM vary based on variant. Tyres fitted must be rated to at least 140km/h (N speed rating) for off-road vehicles. Adjustable Bypass rear kit option can include coilover feature on the shock absorbers for additional stability control.

Warranty: 5 year unlimited kilometre warranty. Warranty excludes accelerated wear and tear of original vehicle components due to increased loads.
