Outback Armour

GVM Upgrades

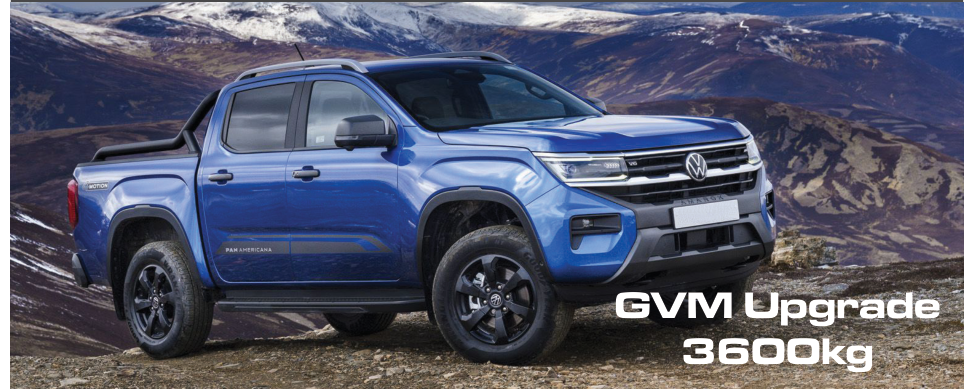

VW Amarok NF - GVM Upgrade - 3600kg

ENQUIRY ONLY
Taxes included.
Vehicle Specifications & InformationVW Amarok NF - GVM Upgrade - 3600kg Vehicle Data Original GVM Upgrade Gross Vehicle Mass (GVM) <= 3350 kg 3600 kg Front Axle Rating <= 1490 kg 1600... SHOW MORE ↓
View full details

Vehicle Specifications & Information

VW Amarok NF - GVM Upgrade - 3600kg

Vehicle Data Original GVM Upgrade
Gross Vehicle Mass (GVM) <= 3350 kg 3600 kg
Front Axle Rating <= 1490 kg 1600 kg
Rear Axle Rating <= 1959 kg 2200 kg
Braked Towing Capacity 3500 kg 3500 kg
Gross Combination Mass (GCM) <= 6200 kg (4cyl turbo)<br>6350 kg (4cyl bi-turbo)<br><= 6400 kg (V6 turbo) <= 6200 kg (4cyl turbo)<br>6350 kg (4cyl bi-turbo)<br><= 6400 kg (V6 turbo)
Towing Capacity @ Full GVM <= 2850 kg (4cyl turbo)<br>>= 3000 kg (4cyl bi-turbo)<br><= 3050 kg (V6 turbo) <= 2600 kg (4cyl turbo)<br>2750 kg (4cyl bi-turbo)<br><= 2800 kg (V6 turbo)
Vehicle Category Code NA NB1

Vehicle Model Variants

  • Double Cab styleside utility: Core (4x4), Life (4x4), Style 2.0L (4x4/4WD), Style 3.0L (4x4/4WD), Aventura TSI (4WD) and Panamericana (4x4/4WD).

Approved Tyre Sizes

Approved Tyre Sizes Rim Load Rating Tyre Load/Speed
255/70R16 >= 1100 kg 115T
255/70R17 >= 1100 kg 115T
255/65R18 >= 1100 kg 115T

GVM Upgrade Approved Shock Absorbers

Digressive / Adjustable Internal Bypass: Designed and engineered for endurance, highly featured to resist shock fade and heat, specifically designed for touring and fleet vehicles, and built for comfort and control on corrugations and rough roads. Adjustable Internal Bypass shock absorbers provide adjustable damping control with 20+ settings for vehicles with varying loads, on and off road.

Suspension Kits - Front

  • Assembled strut kits are complete replacement items pre-configured by the Outback Armour tech team.
  • Front load options: Trail - OEM bumper (unladen); Expedition - approx 50-100kg constant front load; Expedition HD - approx 100-150kg constant front load.
  • Kit inclusions: Shock Absorbers (DSV or ADJ) - 2 each, Strut Top Mounts - 2 each, Coil Springs - 1 pair.

Suspension Kits - Rear

  • Expedition: 50mm lift (@ approx 250kg load); 250kg minimum rear load recommended.
  • Expedition HD: 50mm lift (@ approx 500kg load); 300kg minimum rear load required.
  • Expedition XHD: 50mm lift (@ approx 800kg load); 500kg minimum rear load required.
  • Kit inclusions: Shock Absorbers (DSV or ADJ) - 2 each, Leaf Springs - 2 each, U-Bolts - 4 each, Shackles & Pins - 2 each, Bump Stop Striker Pad - 1 kit, Centre Bearing Spacer Kit - 1 kit, Leaf Spring Bush Kit (polyurethane) - 1 kit.

GVM Components Required

  • CAT 6 Indicator & Wiring Harness Kit - 1 kit.
  • Auxiliary Reverse Light Kit - 1 kit (only required for Core/Life variants with a styleside tub).
  • GVM Document Package (Owners Manual Supplement and Tyre Placard) - 1 kit.

Optional Extras

  • Upper Control Arms - 1 kit.
  • Rear Bump Stop Kit - 1 kit.

Original vehicle GVM and towing capacity at full GVM vary based on variant. Tyres fitted must be rated to at least 140km/h (N speed rating) for off-road vehicles.

Warranty: 5 year unlimited kilometre warranty. Warranty excludes accelerated wear and tear of original vehicle components due to increased loads.

Technical Specifications & Fitment

Supplier Outback Armour
