Shock Absorber Range Comparison
Tough Dog Suspension Sunshine Coast
Tough Dog Nitro Gas suits lighter-duty comfort and control; Foam Cell is the versatile all-round touring option; 40 mm Adjustable adds nine-stage manual tuning; 45 mm Adjustable increases bore size for larger lifts and demanding use; Ralph targets heavily laden touring; and TD-R Pro adds remote reservoirs with separate rebound and compression adjustment.
The Ute Shop can select Tough Dog shocks, springs and supporting components around vehicle weight, accessories, towing and driving conditions, with professional fitting available at our Warana workshop.
Find Tough Dog Suspension for My 4WDWhich Tough Dog Shock Absorber Should I Choose?
| RANGE | ADJUSTMENT | BEST SUITED TO | MAIN DIFFERENCE |
|---|---|---|---|
| Nitro Gas | Fixed | Light and medium 4WDs and road use | Comfort and control focused entry point |
| Foam Cell | Fixed | Touring, corrugations and mixed use | Foam cell helps limit aeration and fade |
| 40 mm Adjustable | Nine-stage | Multi-purpose, towing and work vehicles | External adjustment with foam-cell technology |
| 45 mm Adjustable | Nine-stage | Large lifts and demanding applications | 45 mm bore in a 70 mm casing |
| Ralph | Fixed velocity-sensitive | Fully laden remote-area tourers | 50 mm bore and very high oil capacity |
| TD-R Pro | Eight-stage rebound and compression | Performance off-road and changing loads | Remote reservoir and independent damping control |

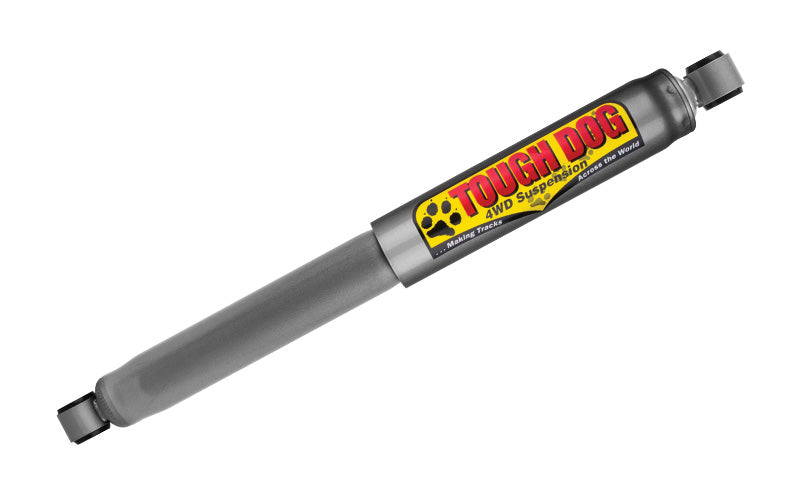

Tough Dog Nitro Gas Shocks
Tough Dog Nitro Gas twin-tube shock absorbers with 35 mm internal bore
The Nitro Gas range provides a cost-effective, dependable replacement for factory dampers. Built with twin-tube construction and low-pressure nitrogen gas, it enhances ride comfort and steering control for light 4WDs, daily work vehicles, and weekend getaways.

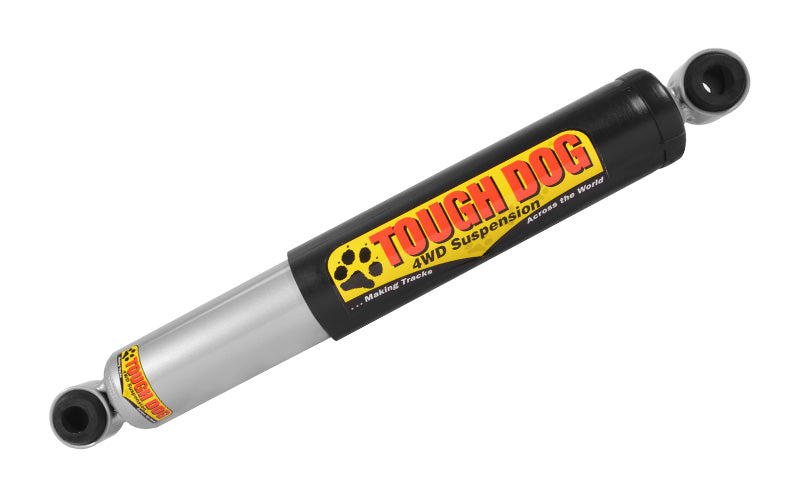

Tough Dog Foam Cell Shocks (Award-Winning All-Rounder)
Tough Dog Foam Cell shock absorber range with 41 mm internal bore for corrugations
Tough Dog Foam Cell shock absorbers incorporate a micro-cellular foam insert that keeps oil and gas separated inside the outer tube. This eliminates oil aeration and cavitation during rapid cycling, making Foam Cell dampers the ideal choice for outback corrugations, touring, and extended highway towing.
Tough Dog 40mm & 45mm 9-Stage Adjustable Shocks

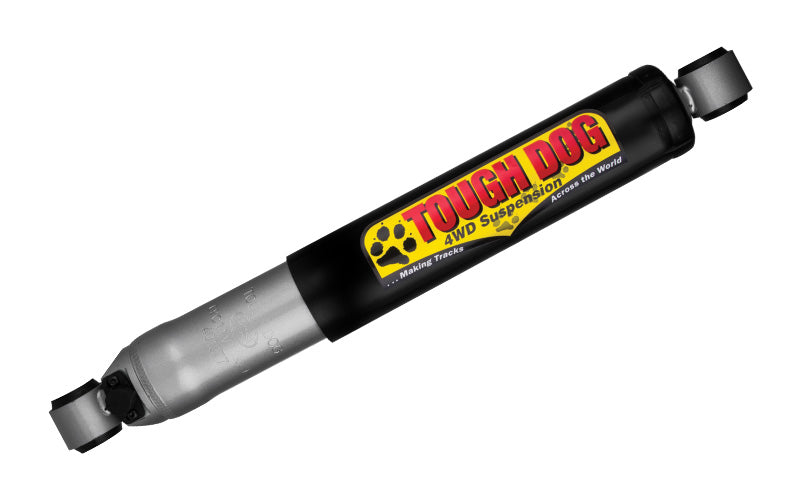

Tough Dog 40 mm 9-stage adjustable shock absorbers

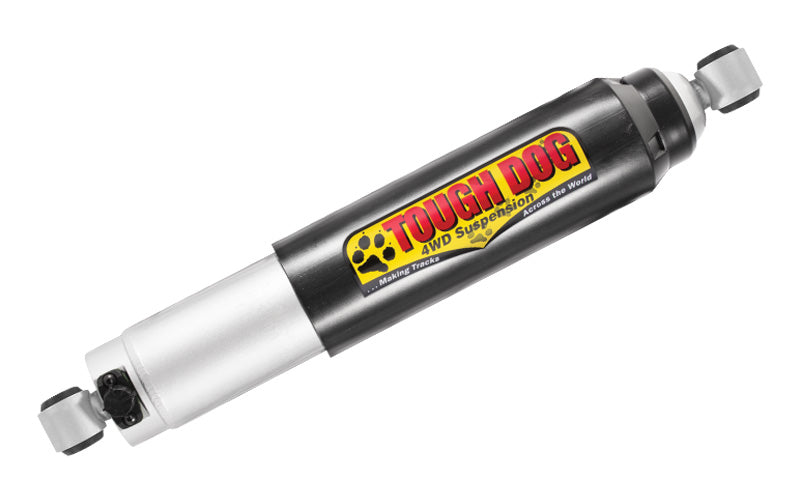

Tough Dog 45 mm Big Bore 9-stage adjustable shock absorbers for heavy 4WDs
Featuring an external adjustment knob with 9 distinct damping settings, Tough Dog Adjustable shocks allow you to tailor the ride to your exact load. Run position 1-3 for supple unladen comfort around town, or dial up to 7-9 for firm, controlled damping when towing a caravan or carrying maximum payload.
- 40mm internal bore suited to standard lifts and multi-purpose recreational 4WDs
- 45mm Big Bore casing with enormous oil capacity for large lifts and heavy work
- Easy external dial adjustment without requiring tools or lifting the vehicle

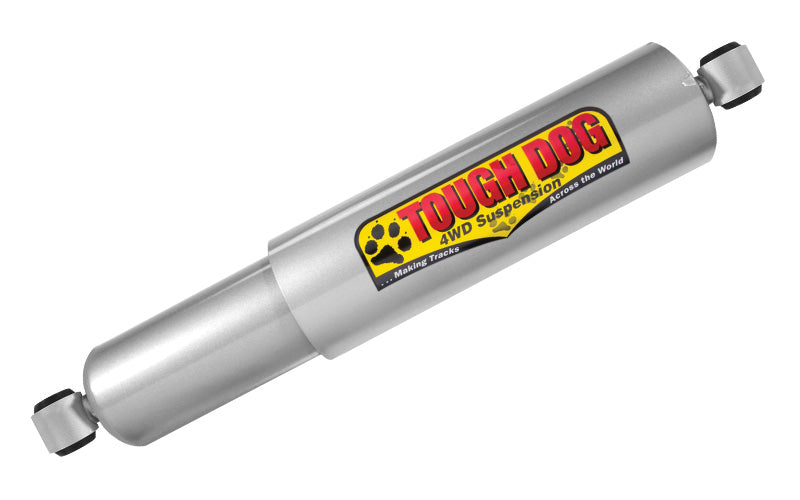

Tough Dog Ralph Shocks (Heavy Haulers)
Tough Dog Ralph 53 mm extreme-duty shock absorbers
Tough Dog Ralph is a massive 53mm bore shock absorber specifically created for heavily laden 4WD touring rigs and mining vehicles. Its huge fluid volume provides extraordinary heat capacity, resisting fade under constant extreme gross weight on remote outback tracks.

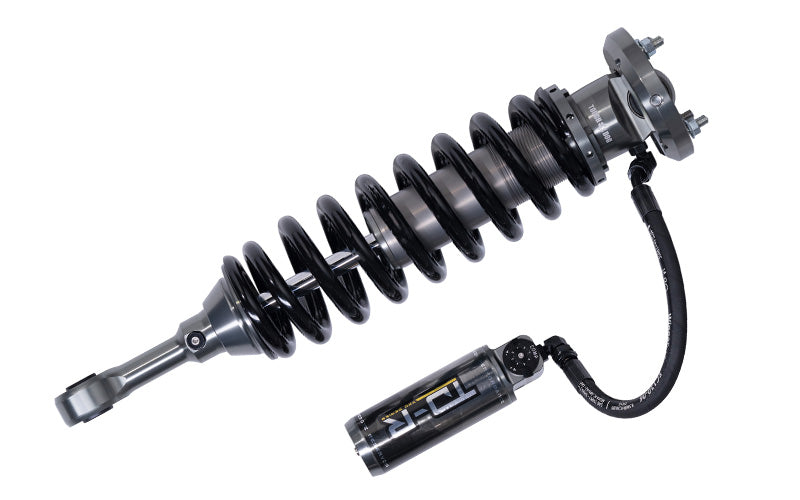

Tough Dog TD-R Pro Remote Reservoir
Tough Dog TD-R Pro 53 mm remote-reservoir dampers with dual-speed compression and rebound adjustment
The TD-R Pro series represents Tough Dog's peak performance off-road shock absorber. Equipped with an external remote reservoir, high-flow piston, and separate high and low-speed adjusters, it delivers competition-level wheel control, thermal stability, and complete rebuildability.
Tough Dog springs, Upper Control Arms (UCAs), panhard rods, and steering dampers work together as an integrated system. The Ute Shop also installs certified Tough Dog GVM Upgrades to legally increase your vehicle's payload capacity.
Browse related categories
Frequently asked questions
Are Tough Dog adjustable shocks adjusted for lift height?
No. The 9-stage adjustment dial controls damping firmness (compression and rebound resistance), not ride height. Lift height is determined by the selected coil or leaf springs.
What is the benefit of Tough Dog Foam Cell technology?
The micro-cellular foam sleeve prevents oil and gas from mixing (aeration) during aggressive cycling, dramatically reducing shock fade on corrugated roads.
Does Tough Dog suspension increase legal payload?
A standard lift kit does not alter legal payload. However, Tough Dog certified GVM Upgrade kits are engineered and second-stage compliant to legally increase GVM on approved vehicles.
When should I choose Tough Dog Ralph over Foam Cell?
Ralph shocks have a massive 53mm bore designed for vehicles operating near maximum gross weight on extended outback journeys, offering superior heat capacity.
Can The Ute Shop fit Tough Dog suspension in Warana?
Yes. We supply and professionally install all Tough Dog Nitro Gas, Foam Cell, Adjustable, TD-R Pro, and GVM upgrade kits with precision alignment.
Tell us the make, model, year and variant and what you want fitted, and we will come back with the right options and a price for the parts and the fitting.
