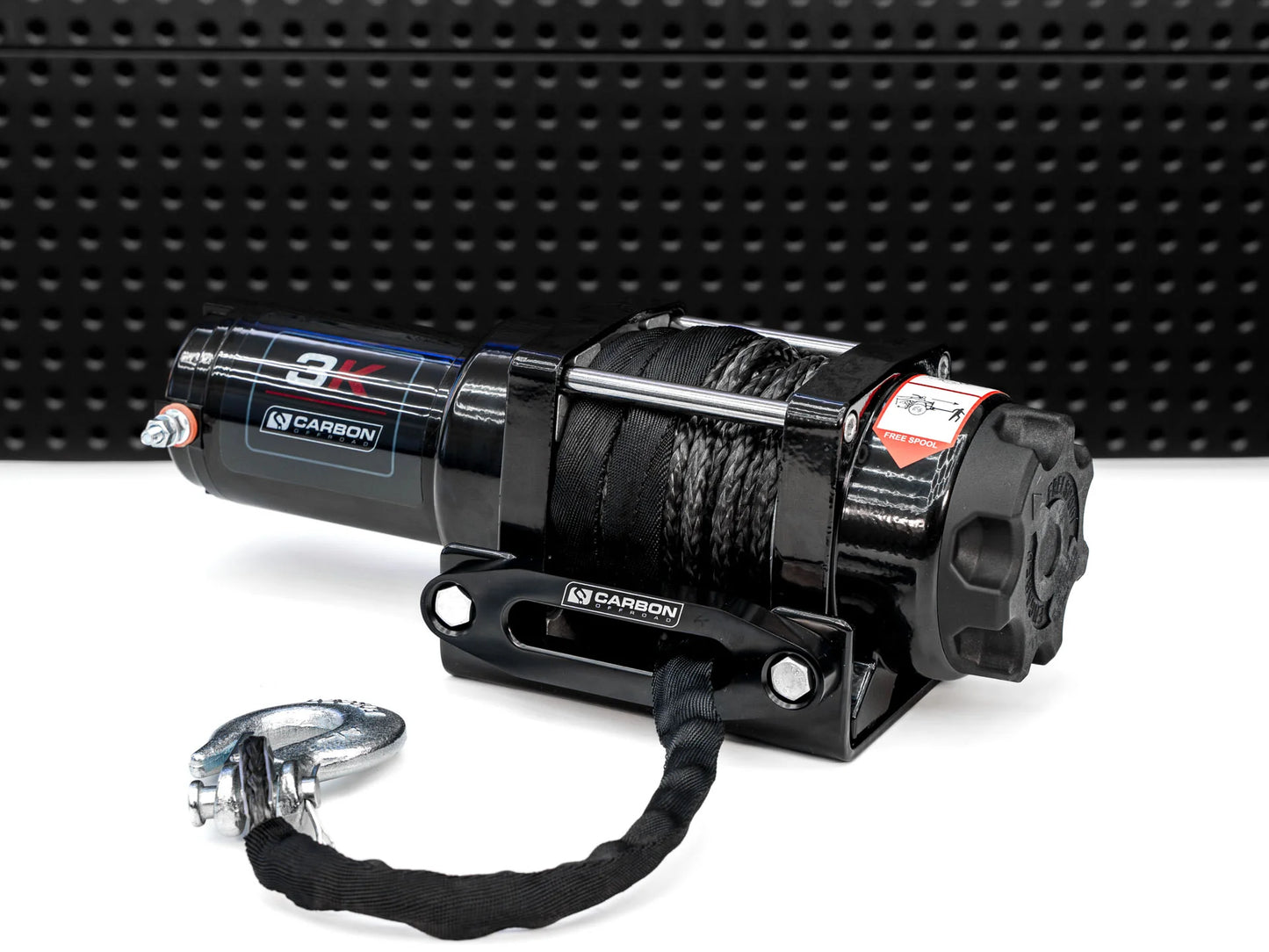

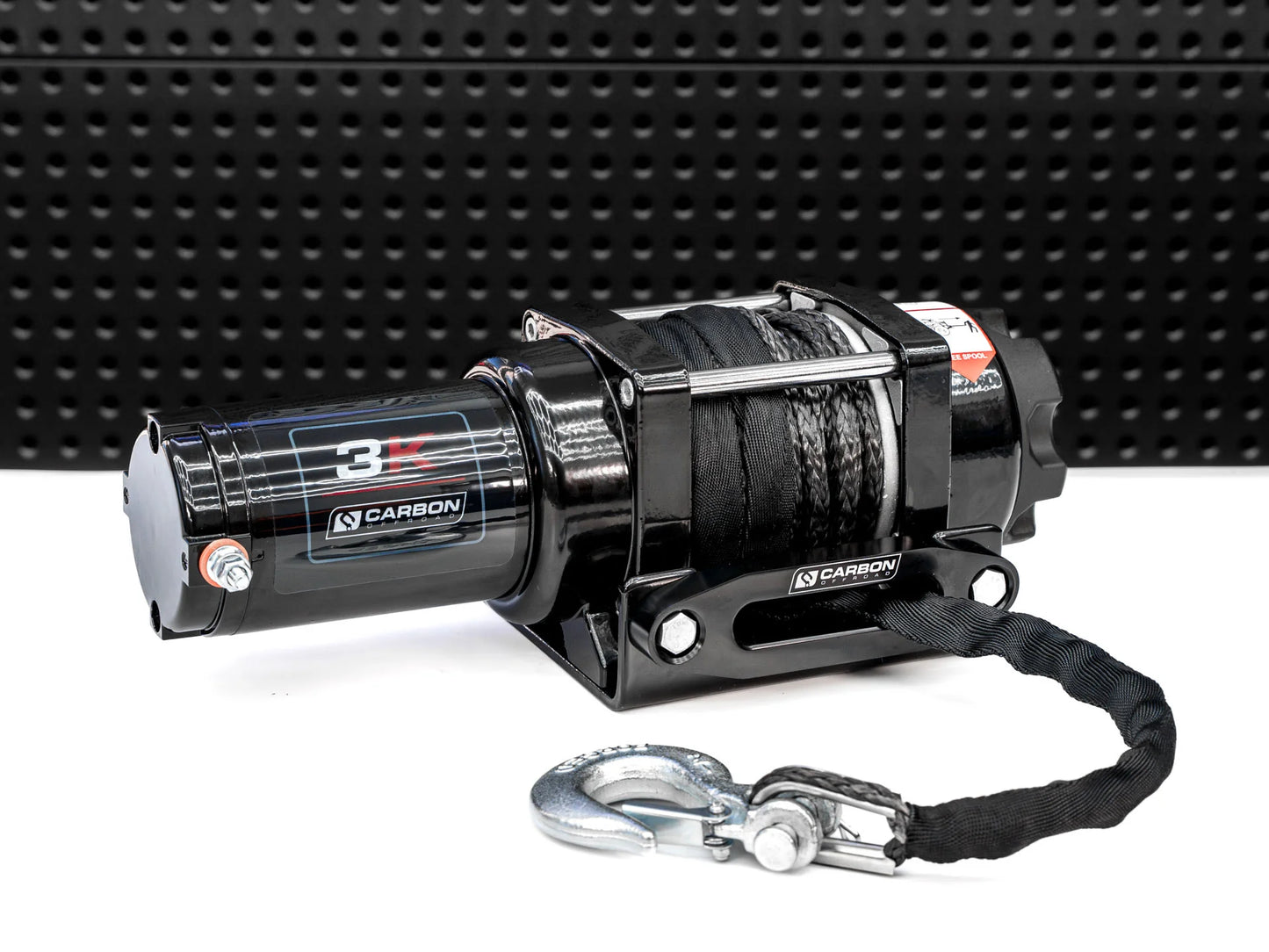

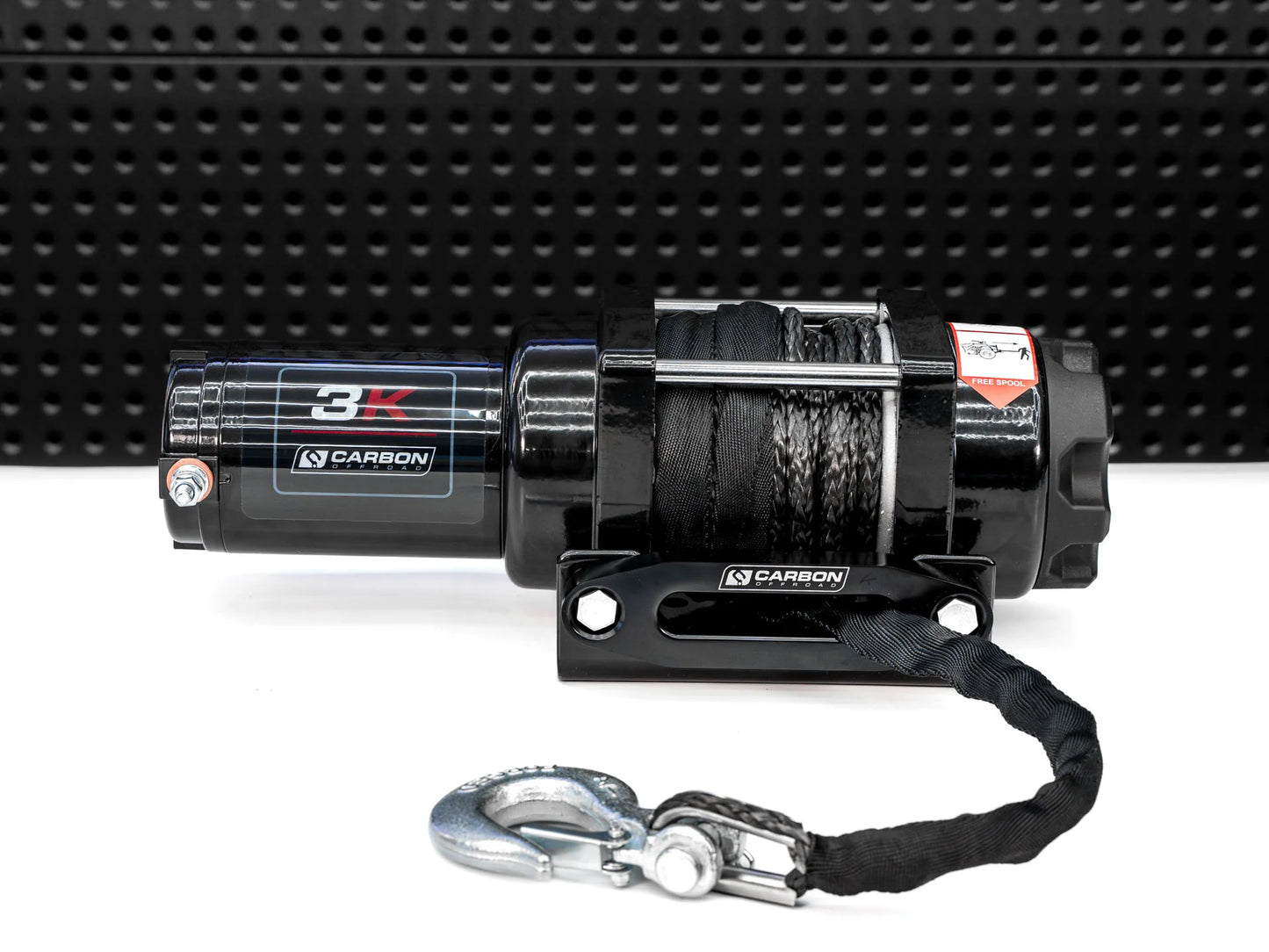

Carbon 3.0k 3000lb ATV/Trailer Winch

ENQUIRY ONLY
Taxes included.
Key Features Rated Line Pull: 3,000 lbs (1360 kg), single-line Motor: 12V DC, 1.5 HP Permanent Magnet Motor Remote Controls: Wired remote with 12 ft (3.7 m) lead; Wireless remote included Geartrain: Single-stage planetary Gear Ratio: 153:1... SHOW MORE ↓
View full details
Key Features
  • Rated Line Pull: 3,000 lbs (1360 kg), single-line
  • Motor: 12V DC, 1.5 HP Permanent Magnet Motor
  • Remote Controls: Wired remote with 12 ft (3.7 m) lead; Wireless remote included
  • Geartrain: Single-stage planetary
  • Gear Ratio: 153:1
  • Clutch (Free-Spooling): Split ring gear
  • Brake System: Self-locking gear train (rated load holding)
  • Drum Dimensions: 1.26” diameter × 2.87” length (32 mm × 73 mm)
  • Synthetic Rope: 43 ft × 3/16” diameter (13 m × 4.8 mm)
  • Fairlead: Roller
  • Mounting Bolt Pattern: 3.0” × 4.87” (76 mm × 124 mm)
  • Winch Dimensions: 12.2” × 5.0” × 5.0” (310 mm × 127 mm × 127 mm)
  • Packing Dimensions: 15.7” × 7.9” × 8.7” (400 mm × 200 mm × 220 mm)
  • Shipping Weight: 22 lbs (10 kg)
  • Warranty: 1 year

Technical Specifications & Fitment

Supplier Carbon Offroad
